Chassis Sheet Metal Design

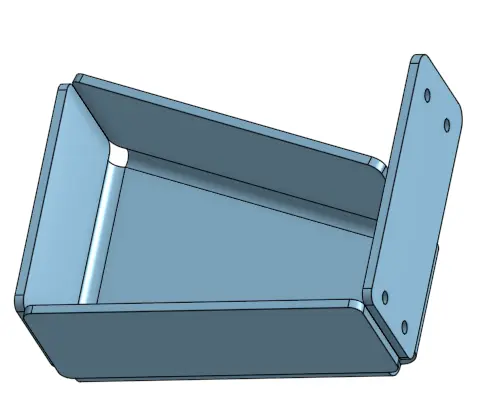

An engineer designed a chassis using 2.4mm stainless steel sheet metal, as depicted in the image below.

The design includes a separate brace part that will be mounted to cover the open face and enhance structural integrity (Mouting features not shown). What could a major flaw in this chassis design?
