PROBLEM STATEMENT

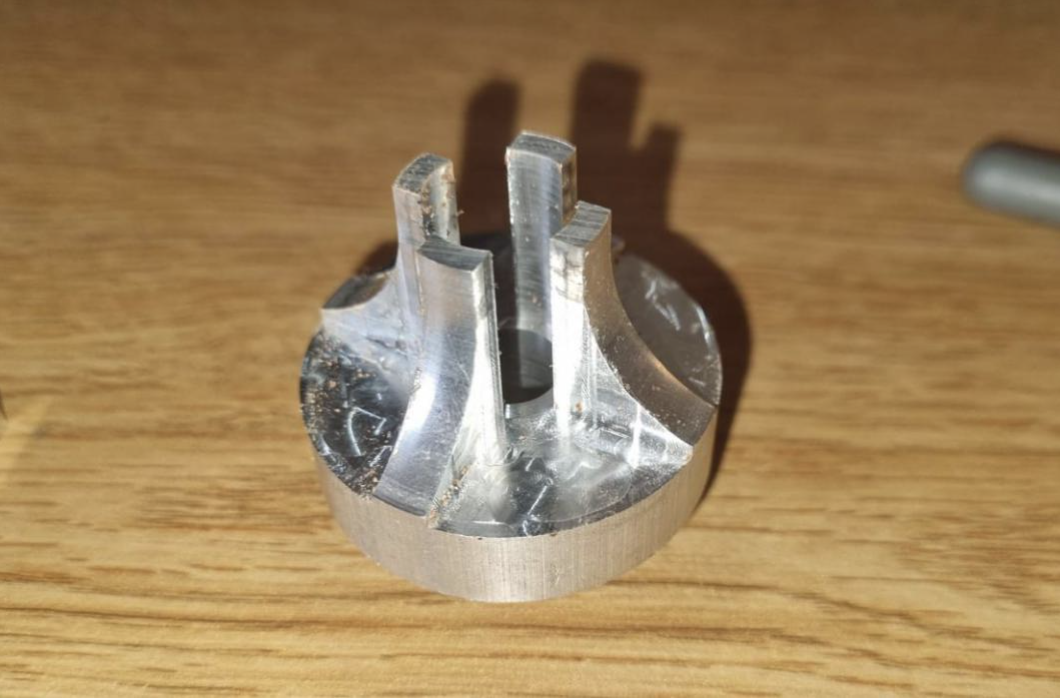

Program, simulate, and machine a mini engineering fountain by first turning the base geometry on a Tormach CNC lathe (facing, roughing, finishing, and a second setup after a 180 degree rotation), then completing secondary milling operations on a Tormach 770M to drill and pocket features between spires, and finally inspecting critical dimensions to verify all tolerances are met.
BILL OF MATERIALS
| Item | Qty | Specification | Purpose |
|---|---|---|---|
| Aluminum stock | 1 | 1.50 in diameter x 2.0 in long | Stock for the turned fountain |
| OD turning tool | 1 | Tool T0101 (OD rough right) | Facing and roughing cycles |
| Finishing turning tool | 1 | Tool T1212 | Finishing cycle for surface quality |
| Spot drill | 1 | 3/8 in spot drill, Tool T23 | Spot the center hole before drilling |
| Drill | 1 | 1/2 in drill, Tool T162 | Drill center hole to 1.50 in depth |
| End mill | 1 | 1/4 in 3 flute end mill, Tool T285 | Pocket between spires, leave stock for finishing |
| End mill | 1 | 1/8 in end mill, Tool T282 | Finish fine details between spires |
