PROBLEM STATEMENT

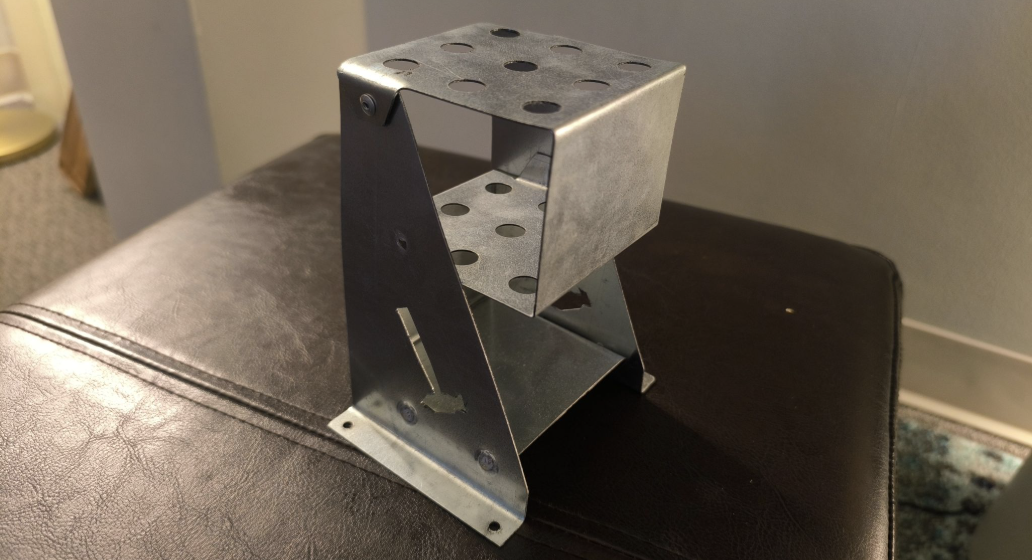

Design and fabricate a durable, safe-to-handle sheet-metal pencil holder (with side panels and a second tier) using laser cutting, bending, riveting, and spot welding, while meeting key dimensional targets (nominally 5" height, 3" width, 3" depth, with ± 0.1 in tolerances) and producing a clean finish with deburred edges suitable for everyday use.
BILL OF MATERIALS
| Item | Qty | Specification / size | Purpose / notes |
|---|---|---|---|
| Sheet metal (main blank) | 1 | 4 in x 13.5 in | Main body that is bent into the holder shape |
| Sheet metal (side blanks) | 2 | 3 in x 5.5 in | Side panels/tabs that attach to body |
| Blind rivets | as needed | 1/8 in rivets | Fasten top tabs and secure panels |
