Dynamic characterization of metamaterials based on selective emptyin
Ismael Rodriguez Sesma
Project Timeline
Jan 2022 - Jun-2023
OVERVIEW
This project investigated how additive manufacturing (3D printing) can enable locally resonant “metamaterial” structures for passive vibration suppression. I first established a non-destructive workflow to characterize material properties of printed PLA parts—especially Young’s modulus—using vibration testing and an ISO-based methodology applied to beam antiresonance frequencies. With those material parameters, I built finite element (FEM) models in MATLAB from scratch for free–free beams and free–free–free–free plates, then validated them against analytical plate/beam solutions.

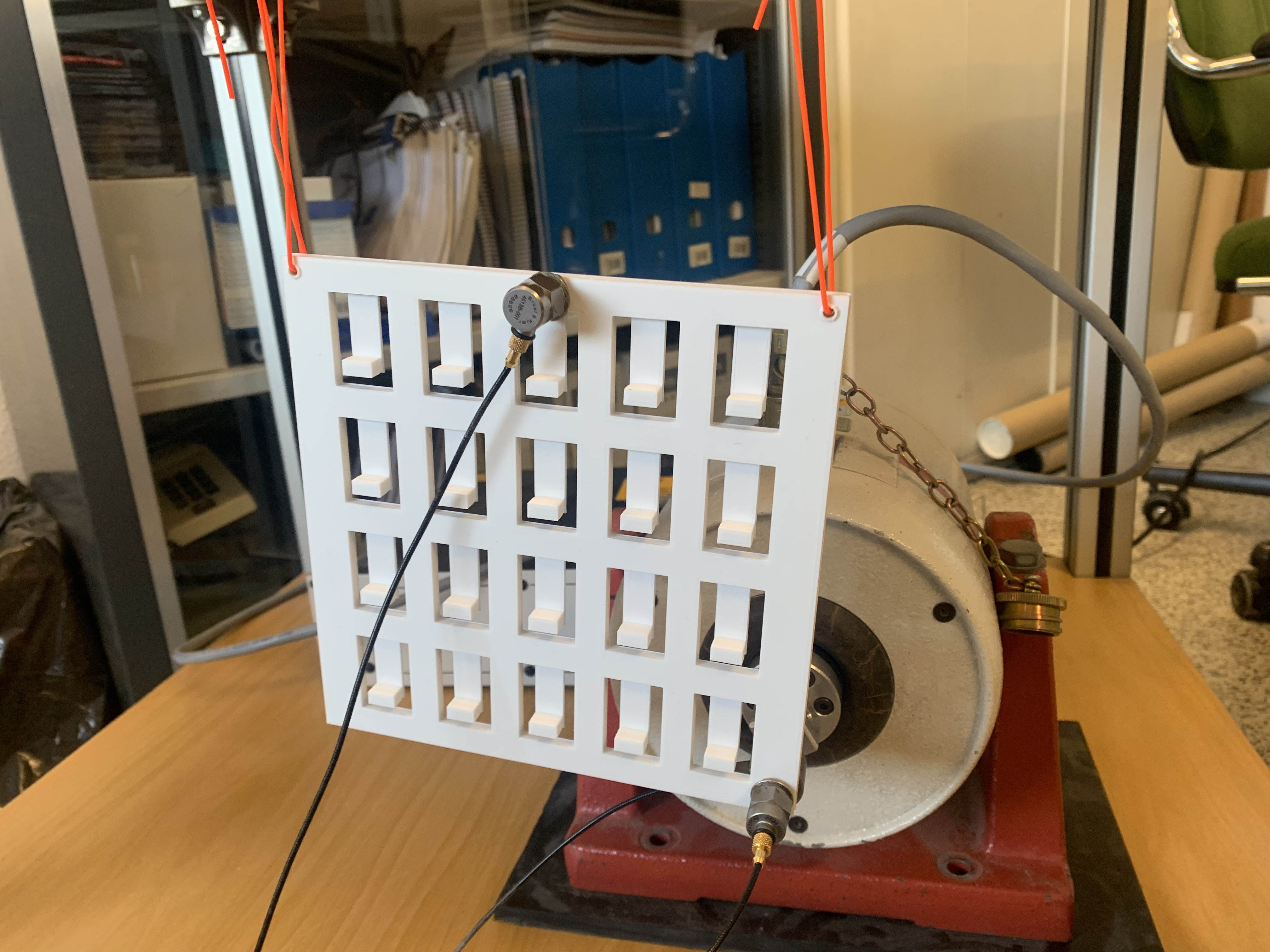

The core design outcome was a family of 3D-printed plates embedding an array of tuned mass dampers (TMDs) created via selective emptying: 20 compliant resonators integrated into the plate to attenuate a targeted bending “breathing” mode. Finally, I executed an experimental campaign (shaker + accelerometers), diagnosed real-world boundary-condition effects (thread stiffness + pendulum modes), estimated damping from test data, and refined the numerical model to better match measured frequency responses
HighlightS
- Designed and validated a non-destructive elastic modulus characterization method for printed PLA using vibration tests on beam specimens (ISO 16940 approach adapted to this application), then used the measured modulus to feed plate simulations
- Built a custom MATLAB FEM solver (element formulation, meshing, assembly, frequency response solution) for free–free beams (beam elements) and free–free–free–free plates (Mindlin–Reissner plate elements + Gauss–Legendre integration)
- Executed a large experimental campaign: defined 50 beam configurations, printed 3 repeats each (≈150 tests) to quantify repeatability and sensitivity to print parameters (orientation, raster angle, infill, layer height, infill pattern)
- Designed embedded TMD geometries (cantilever “tab” + tip mass) and performed parametric tuning to hit target frequencies; produced two tuned-plate variants to account for the fact that “hole patterns” shift the parent plate’s modal frequencies
- Demonstrated targeted resonance attenuation experimentally: the tuned plates showed suppression at the objective frequencies (e.g., ~250 Hz and ~180 Hz cases), validating the locally resonant concept in physical prototypes
- Closed the loop between theory and test by:
- Identifying low-frequency artifacts from “FFFF in 1g” suspension (pendulum-like motion and thread stiffness)
- Adding equivalent stiffness/mass effects into the FEM model
- Estimating damping via the half-power bandwidth method and implementing proportional damping for improved FRF matching
