Description:

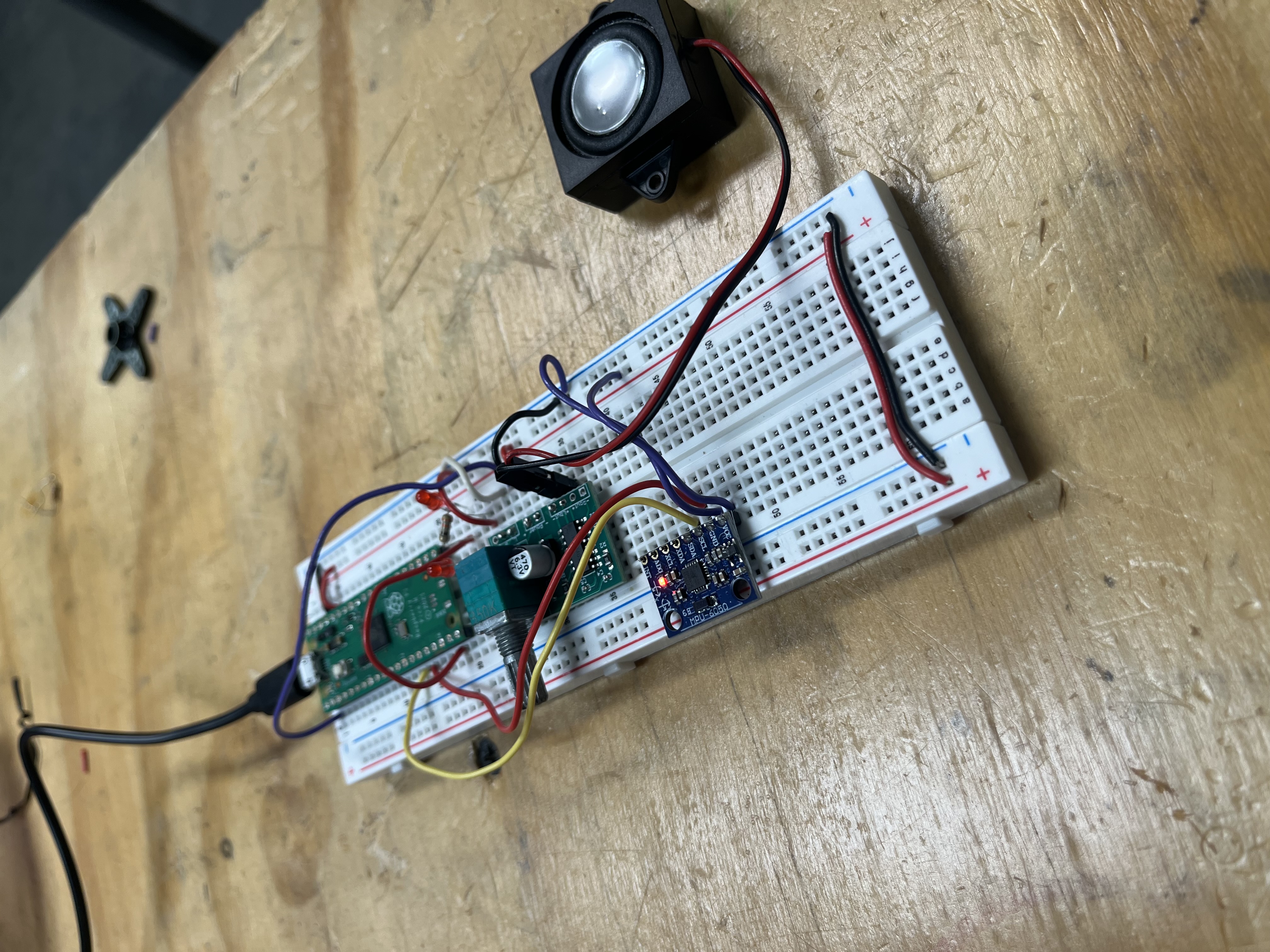

Utilized a breadboard, Rasberry Pi Pico, amplifier, accelerometer, LEDs, and a speaker in the project. In addition, coded logic in python into the Rasberry Pi to sense movement and actuate the sound and lights. The project is made to be integrated into my electric skateboard.
Code for the project:
import time
import math
import array
import board
import busio
import digitalio
import adafruit_mpu6050
import audiopwmio
import audiocore
i2c = busio.I2C(board.GP11, board.GP10, frequency=100000)
#reading my finicky accelorometer
def make_mpu():
time.sleep(0.3)
for addr in (0x68, 0x69):
try:
mpu_local = adafruit_mpu6050.MPU6050(i2c, address=addr)
print("MPU-6050 detected at I2C address 0x{:02X}".format(addr))
time.sleep(0.1)
mpu_local.accelerometer_range = adafruit_mpu6050.Range.RANGE_2_G
return mpu_local
except Exception:
pass
raise RuntimeError("MPU-6050 not found. Check wiring and use 3.3V power.")
mpu = make_mpu()
def read_accel_with_retry(max_tries=3):
"""Safely read acceleration with retry and auto reinit if sensor times out."""
global mpu
last_err = None
for _ in range(max_tries):
try:
return mpu.acceleration
except OSError as e:
last_err = e
time.sleep(0.02)
print("I2C error ({}). Reinitializing MPU…".format(last_err))
mpu = make_mpu()
return mpu.acceleration
greenled = digitalio.DigitalInOut(board.GP14)
greenled.direction = digitalio.Direction.OUTPUT
audio = audiopwmio.PWMAudioOut(board.GP0)
SR = 22050
TONE_FREQ = 800
length = SR // TONE_FREQ
buf = array.array("h", [0] * length)
for i in range(length):
buf[i] = int(0.45 * 32767 * math.sin(2 * math.pi * i / length))
tone = audiocore.RawSample(buf, sample_rate=SR)
#configure accelorometer
AXIS = 0
BACKWARD_THRESH = 1.5
#calibrate accelorometer
print("Calibrating... keep the board still.")
N = 100
baseline = 0.0
for _ in range(N):
ax, ay, az = read_accel_with_retry()
baseline += (ax, ay, az)[AXIS]
time.sleep(0.01)
baseline /= N
print("Baseline on axis", AXIS, "=", baseline, "m/s^2")
#accelorometer read loop
was_backward = False
while True:
ax, ay, az = read_accel_with_retry()
a = (ax, ay, az)[AXIS]
delta = a - baseline
going_backward = delta > BACKWARD_THRESH
greenled.value = going_backward
#beeping
if going_backward:
if not audio.playing:
audio.play(tone, loop=True)
else:
audio.stop()
was_backward = going_backward
print(
"ax={:5.2f} ay={:5.2f} az={:5.2f} | dA={:5.2f} | back={}".format(
ax, ay, az, delta, going_backward
)
)
time.sleep(0.02)
