3D Printed Beam Strain Rate Analysis

hero-image
Riley Ovalle

Project Timeline

Oct 2025 - Nov-2025

OVERVIEW

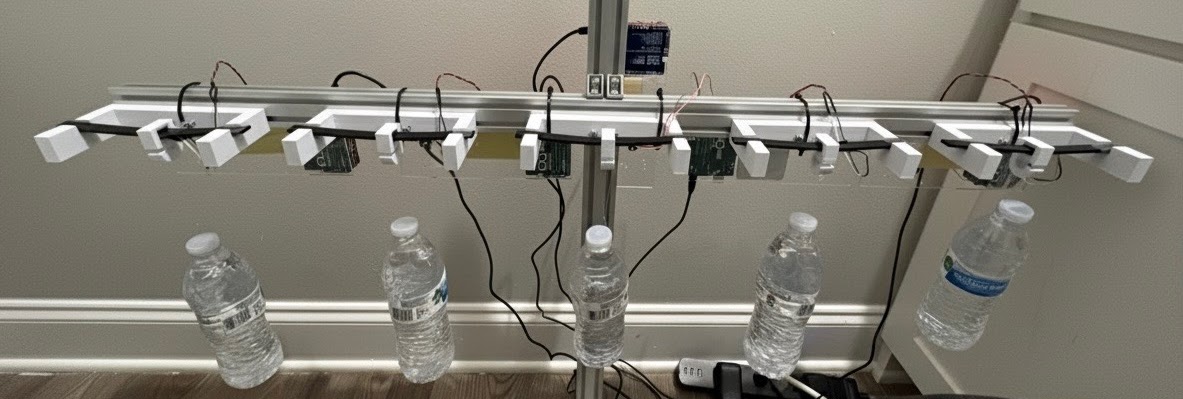

Designed and constructed a data acquisition system to measure the effectiveness of five different PLA infill patterns against strain and creep under a constant load. Key functionalities include the integration of a Wheatstone bridge strain gauge, an LM358B operational amplifier, and an Arduino R4 board for continuous analog data logging. The system utilized a custom-fabricated hanger assembly to apply a constant 500-gram load for 72 hours. The results identified that the Honeycomb pattern was the most resistant to deformation, exhibiting a maximum strain of approximately 0.007.

HighlightS

  • Designed and implemented a data acquisition system to measure strain and creep, integrating an Arduino R4, Wheatstone bridge strain gauge, and operational amplifier
  • Conducted a three-day, controlled experiment on five different PLA infill patterns, applying a constant 500-gram load and logging 4,320 analog data points per beam
  • Determined the optimal material performance, finding that the Honeycomb infill pattern exhibited the lowest maximum strain (approximately 0.007), providing the greatest resistance to deformation

SKILLS

SolidWorksArduino IDECircuit Design 3D Printing Data Acquisition Data Analysis Error Analysis

SUPPORTING MATERIALS

Additional Details

Problem Statement
