FSAE Board Side Connector Adaptation

hero-image
Matthew Ross

Project Timeline

Aug 2025 - Current

OVERVIEW

This project focused on the design, fabrication, and integration of board-side connectors across multiple enclosures for the electric powertrain and low-voltage systems of the McGill Formula Electric car. To meet performance and reliability requirements, including waterproofing, durability, weight reduction, and improved packaging, we implemented a combination of 3D-printed seals and gaskets, carbon fibre walls/base, and precision tolerancing techniques. The system is tailored to withstand demanding motorsport conditions while maintaining serviceability and electrical reliability. This resolved issues with previous iterations of the electrical enclosures, such as poor internal wiring and space utilization.

HighlightS

  • Will reduce the mass of the car's enclosures that adopt the system by 30% (~375g)
  • Improves the reliability of the system's harness by eliminating internal routing in the majority of LV enclosures, resulting in saved space.
  • Simplifies manufacturing process through decreased variability and fewer possible routing errors.

SKILLS

Siemen's NXBambu Labs3D PrintingCarbon Fibre LayupsTolerancing

Additional Details

Problem Statement

In the previous iteration of the FSAE Electric Vehicle, the low-voltage electrical enclosure utilized Deutsch AS-series connectors interfaced with the internal PCB via short pigtail harnesses. While these connectors are known for their ruggedness and environmental sealing, their implementation introduced unnecessary complexity in packaging, wiring, and assembly. This is why we chose to adopt the JAE MX23A-series board-side connectors.

The internal routing of wires between the enclosure’s external connectors and the PCB led to several critical issues.

  • Cable congestion inside the enclosure worsened serviceability and increased the risk of interference.
  • Difficult maintenance, as faults with internal wiring and the fuse plane required full disassembly.
  • Smaller enclosure size to accommodate tolerancing and having saved space from internal routing removal.
  • Multiple electrical failure points, with additional crimp/solder connections increasing resistance and risk under vibration or thermal cycling.

These drawbacks negatively impacted serviceability, reliability, and manufacturing efficiency, which are crucial in a high-performance motorsport environment. To address these issues, the enclosure was redesigned to implement board-side connectors. These connectors are mounted directly to the enclosure wall and terminate directly onto the PCB, eliminating the need for internal pigtails. Key features of the new design include:

  • Custom 3D-printed housings for connector mounting, incorporating tight-tolerance alignment and sealing features
  • Carbon fibre reinforcement plates to provide structural rigidity and precise connector retention.
  • Integration of automotive-grade sealing elements (O-rings/gaskets) to maintain waterproofing and achieve IP67 compliance
  • Reduction in total connector stack height and improved interface accessibility.

Bill of Materials (BOM)

The following table lists the components used in the prototype, including part numbers, quantities, materials, estimated costs, and potential suppliers.

Item

Component

Part Number

Qty

Material

Cost ($)

Supplier

Notes

1

34 Pin Connector

MX23A34SF1

5

Plastic/Metal

Sponsor

JAE

Harness Side

2

34 Pin Connector

MX23A34NF1

5

Plastic/Metal

Sponsor

JAE

Board Side

3

40 Pin Connector

MX23A40SF1

2

Plastic/Metal

Sponsor

JAE

Harness Side

4

40 Pin Connector

MX23A40NF1

2

Plastic/Metal

Sponsor

JAE

Board Side

5

Aluminum Hex Core

DS18B20

0.1m^2

Aluminum

Sponsor

---

1/10" thick

6

3D Printed Walls

ASA + CF

300g

Thermoplastic

11.00

Bambu Labs

PCABS

7

Standoffs

TBD

8

Nylon

6.00

Digi Key

PCB Standoffs

8

Fasteners (Screws, M3)

TBD

6

Stainless Steel

3.00

McMaster

For sealing (gaskets)

9

Gaskets

TBD

2

Silicone/Rubber

5.00

TBD

Waterproofs intersections


10

Carbon Fibre (Twill)---0.6m^2Carbon Fibre
Sponsor---Layups

11

Carbon Fibre L-Brackets---6Carbon FibreSponsor---Additional Support

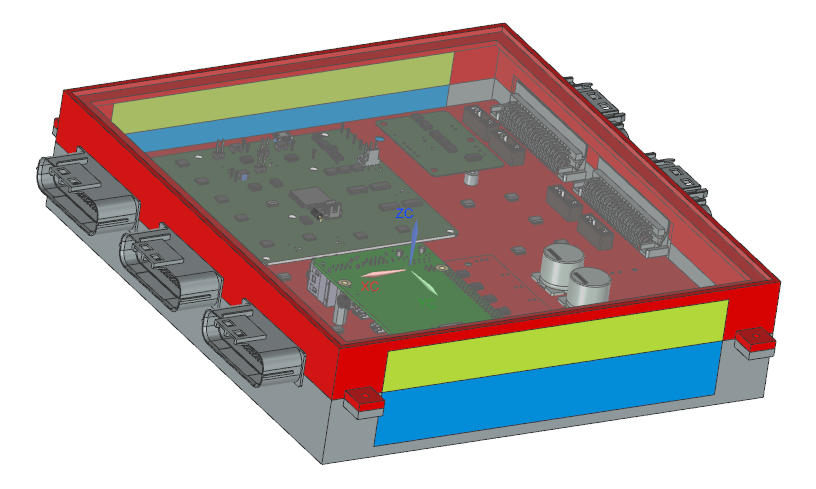

CAD of Under Seat Enclosure

image (5).png

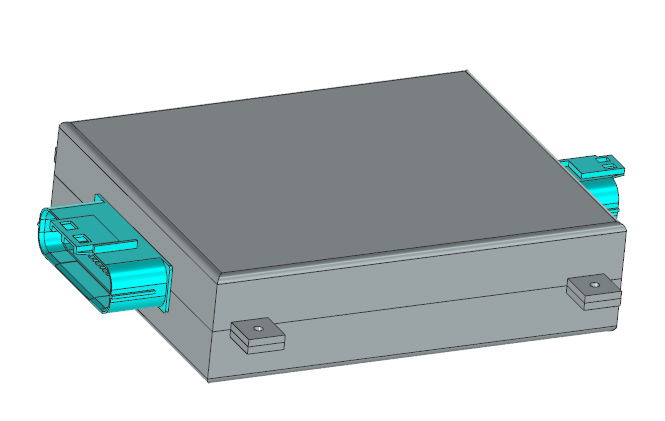

CAD of CAN Node Boxes

image (8).png
