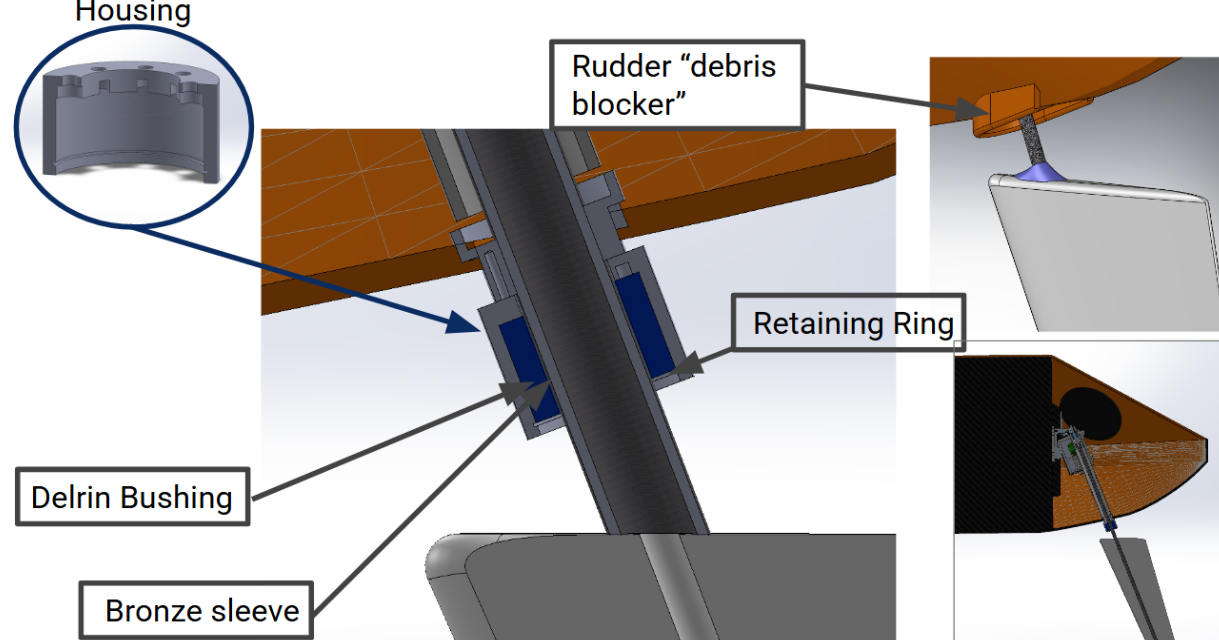

We wanted to increase our rudder shaft diameter. This meant that our previous bushing design did not work due to size constraints and necessitated a new design which had to be underneath the hull. I worked on designing this new system which involved a bronze sleeve on our shaft which interfaces with a delrin bushing.
HOME
Hull Bushing System
Project Timeline
Sep 2025 - Oct-2025
OVERVIEW
This bushing system was re-designed to necessitate a rudder shaft diameter change. It was designed to fit underneath our hull and continue to support the forces on our rudder, while allowing easy rudder control.
