In this project, my team and I were tasked with accurately measuring a food smasher designed by our professor and then reproducing it both digitally and physically. We began by taking precise measurements of the original part, which we used to create detailed 3D models in SolidWorks. After generating renders of each individual component, we prepared manufacturing drawings and moved into the shop to machine the parts. Using a variety of equipment, we fabricated, assembled, and tested the smasher to ensure it matched the original specifications. This project gave me valuable hands-on experience in the complete design-to-manufacturing cycle, including CAD modeling, technical drawing, machining, and teamwork in a lab environment
Objective:
Our objective coming into this project was to measure a food smasher that was previously manufactured and to replicate it through machining processes. During this project we aimed to refine our skills on the lathe and on the mill. We also exposed ourselves to a lot of different tools that we learned to use.
Raw Materials
- Rod of 6061 Aluminum with diameter of 1 inch
- Circular cut sheet of 6061 Aluminum
- ¼-20 Screw
Equipment/Tools
- Machine Lathe
- Machining Mill/Drill
- Cutting Tool
- Knurling Tool
- Drill Bit
- Screw Tapping Tool
- Calipers
- Rulers
Final/Revised Food Smasher Shaft With Final Dimensions
Process for shaft:
For the shaft we started with a large rod of 6061 aluminum and had to stick it in the lathe and secure it by using the chuck key to tighten the grip. This is where we ran into our first problem of it not being able to be perfectly centered. We solved this by adding a guide hole and the thing at the end that spins with the rod. We realized by still using the machine and cutting off 0.05 inches at a time we shaved off enough to make it centered to the spin. Once we had it to our desired 0.62 inches at the time we drilled our hole into the bottom. We had run out of time and had to take it out but the next class period we spent cutting off our excess metal, knurling and tapping our holes, but this is the day we ran into some big issues. While knurling something was messed up with the tool which made it press too hard onto the rod and caused it to defect where it was clamped. Because of this we had to shave off a little bit under the knurling causing it to be a slightly different size under. We sanded and shined it up as well as added a filet to the top and we were done with the shaft.

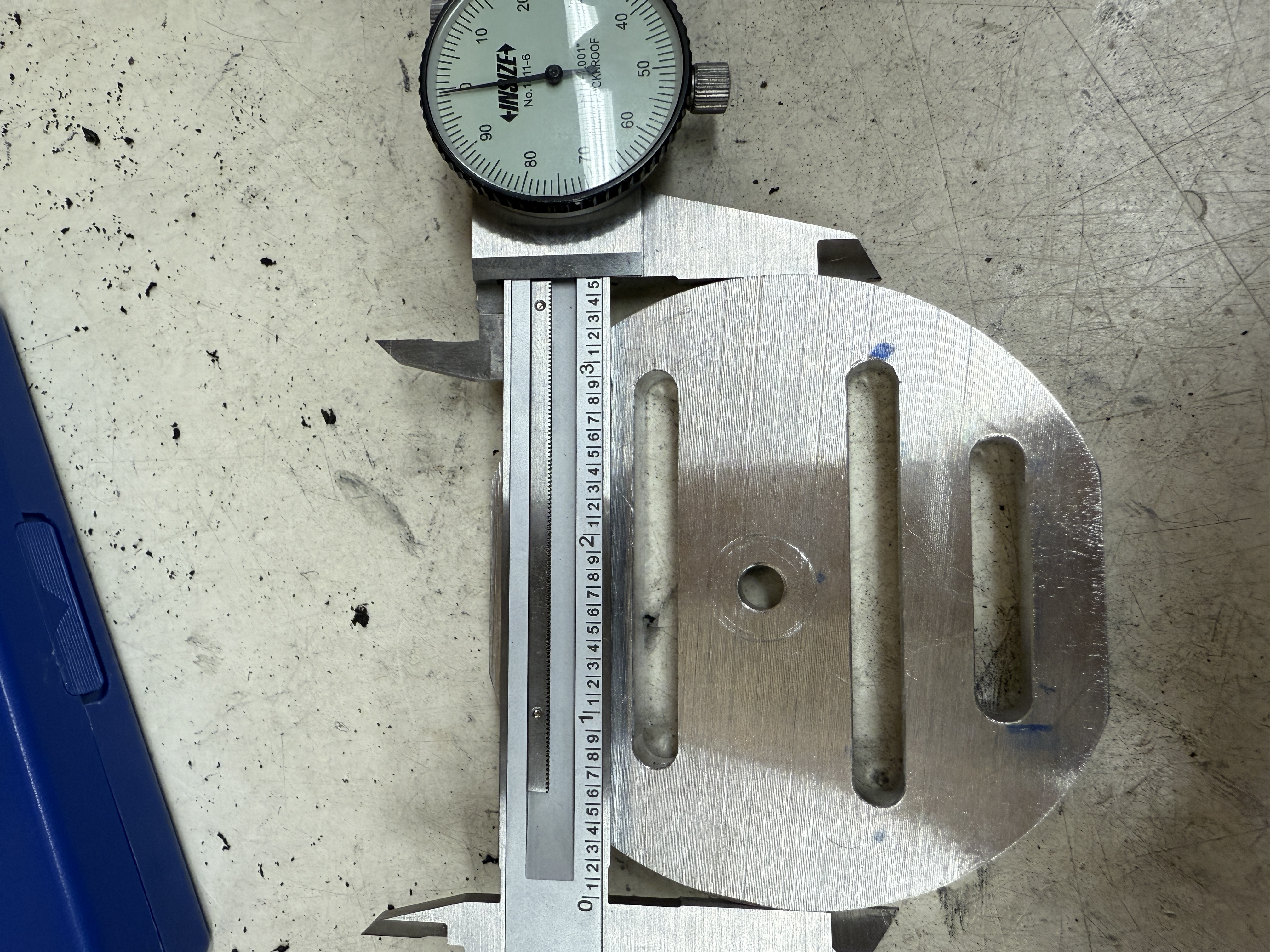

Final/Revised Food Smasher Plate with Final Dimensions
