Problem Statement
Design EOAT for FD296 parts keeping cost in mind.
Solution
Using actuated cups, we can provide a strong hold for a low cost.

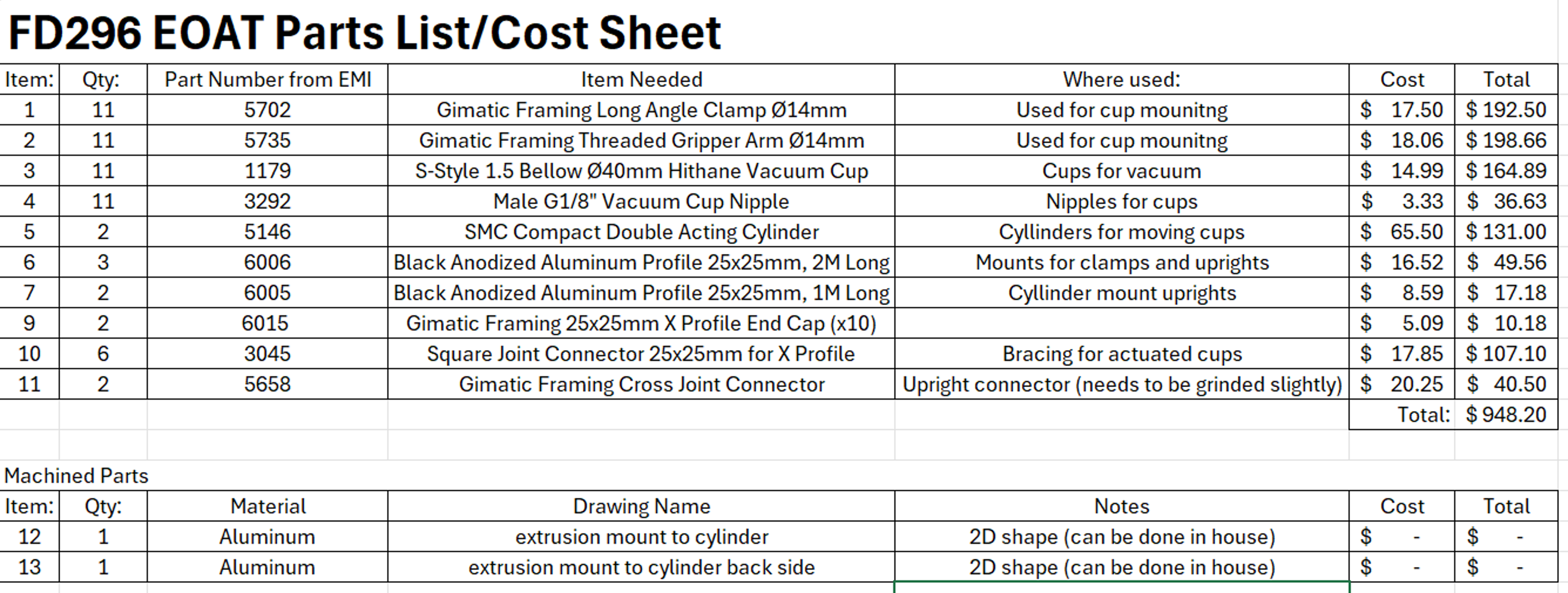

Bill of Materials (BOM)

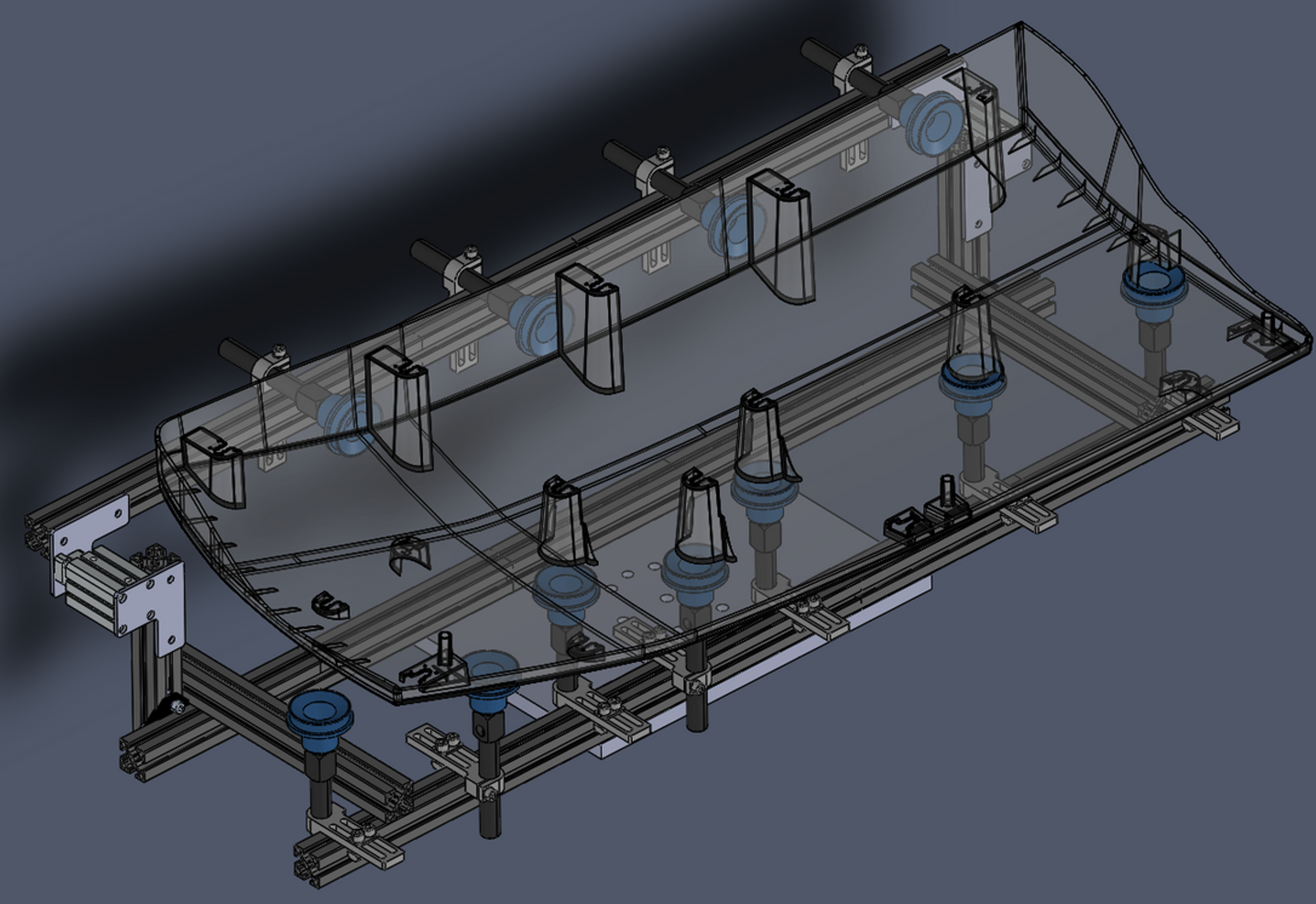

CAD Design
HOME
FD296 EOAT Design for RESRG Automotive
Project Timeline
Jul 2025 - Jul-2025
OVERVIEW
Design end of arm tooling for new automation project to hold FD296 parts keeping budget in mind.
HighlightS
- Created low-cost design chosen to be included in final project
- Created a BOM for all necessary parts
- Utilized clamping system to have a better hold on the part
SKILLS
Robotics and AutomationBill of MaterialsSolidWorksPneumatic Systems
