High Performance Model Rocket Design and Simulation

Arjun

Project Timeline

Oct 2025 - Nov-2025

OVERVIEW

Designed, simulated, and optimized a model rocket to achieve maximum apogee and aerodynamic stability while minimizing drag and weight. The project integrated mechanical design in Fusion 360 with aerodynamic performance analysis using OpenRocket, emphasizing fin geometry, center of gravity (CG), and center of pressure (CP) balance.

HighlightS

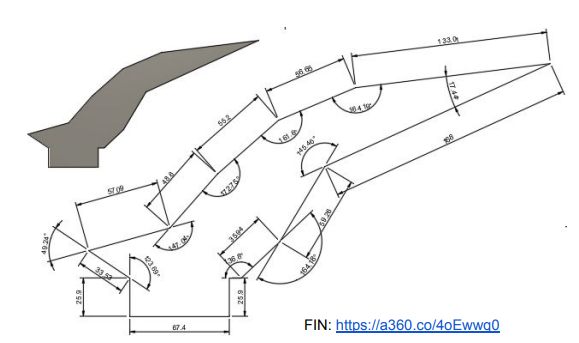

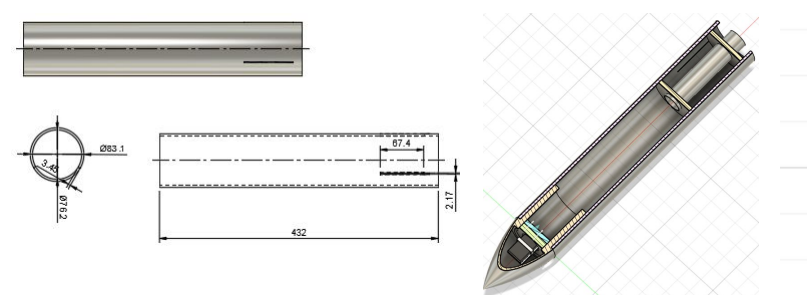

Created a detailed CAD model featuring a custom trapezoidal fin design for improved lift and reduced structural stress.

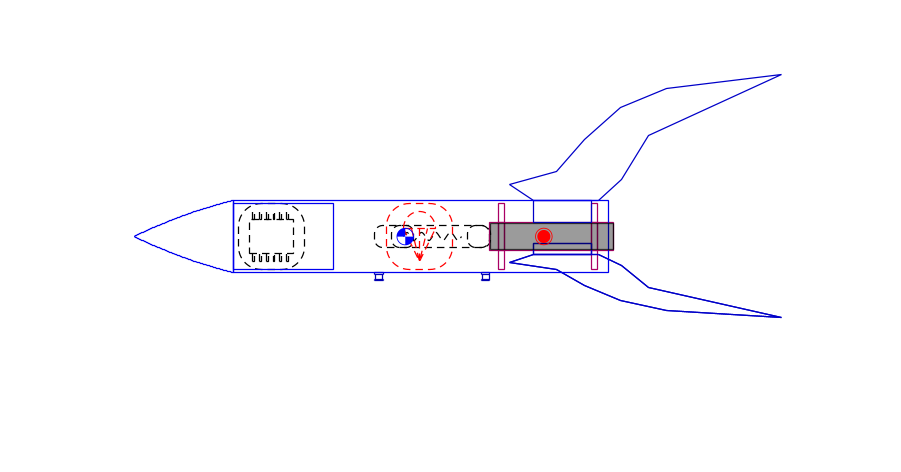

Conducted OpenRocket simulations to analyze flight parameters including thrust, apogee height, vertical acceleration, and stability margin.

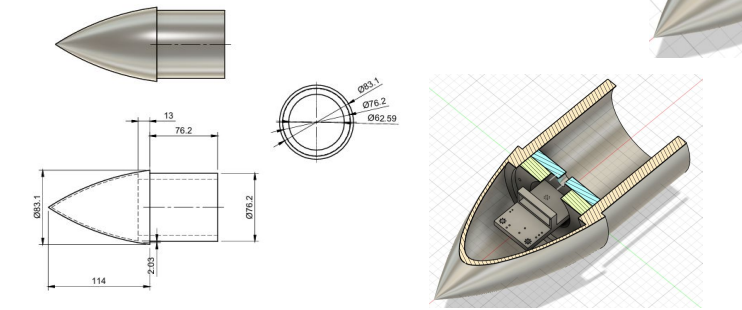

Iteratively optimized body tube length, fin span, and nose cone profile to maintain a stable flight (1.7–2.0 calibers stability ratio).
Selected lightweight materials and structural reinforcements to enhance performance and reduce mass without compromising strength

SKILLS

Fusion 360 (CAD)OpenRocket (Simulation)SolidWorks (Verification)Material OptimizationAerodynamic Analysis

Additional Details

Model Rocket Design & Simulation

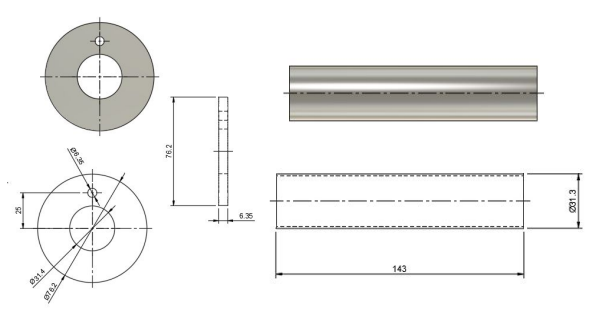

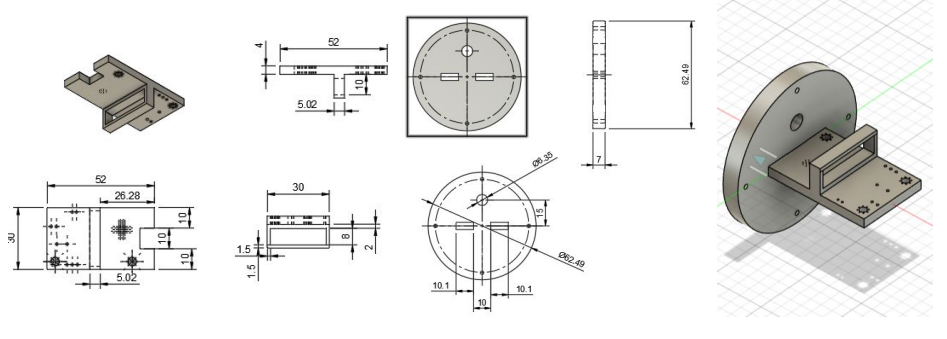

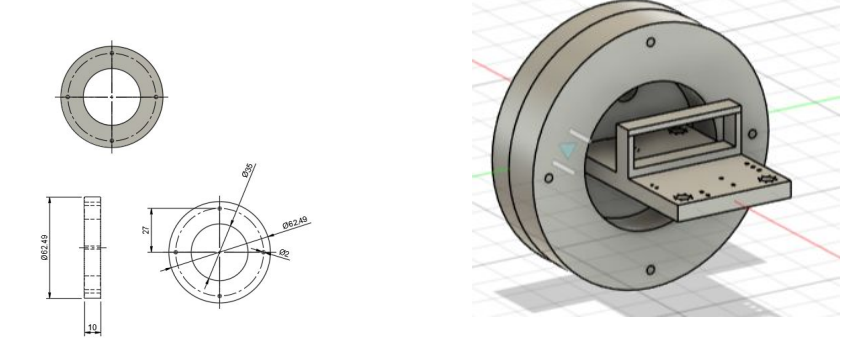

Developed a high-performance model rocket through iterative CAD design, OpenRocket simulation, and stability optimization. The project focused on achieving maximum apogee and aerodynamic efficiency while maintaining flight stability across various motor configurations. Key design considerations included creative fin geometry, nose cone length, and center of gravity/pressure alignment to ensure a stable yet high reaching flight profile. The rocket incorporated birch plywood fins, a PLA 3D-printed nose cone and avionics bay, and precision-engineered centering rings and eye bolts for durability and modular assembly. Using OpenRocket simulations, the final design achieved a stability margin of 1.7 calibers and demonstrated consistent apogee performance under different conditions.
